satelite gps tracking device gsm vehicle gps mobile tracker

Description
Specifications

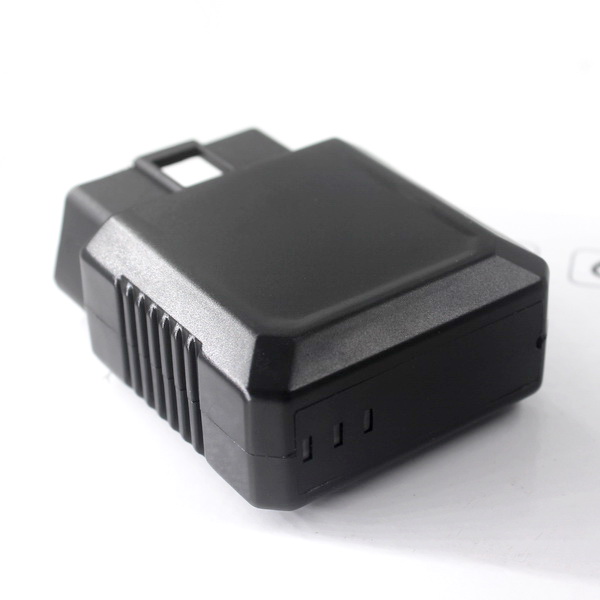

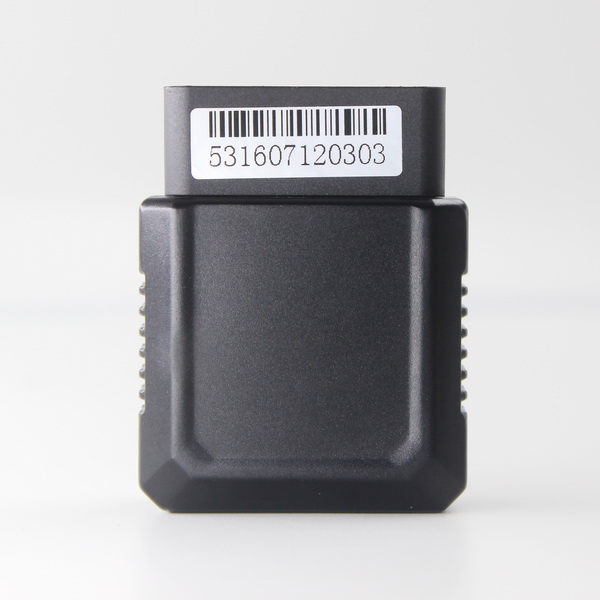

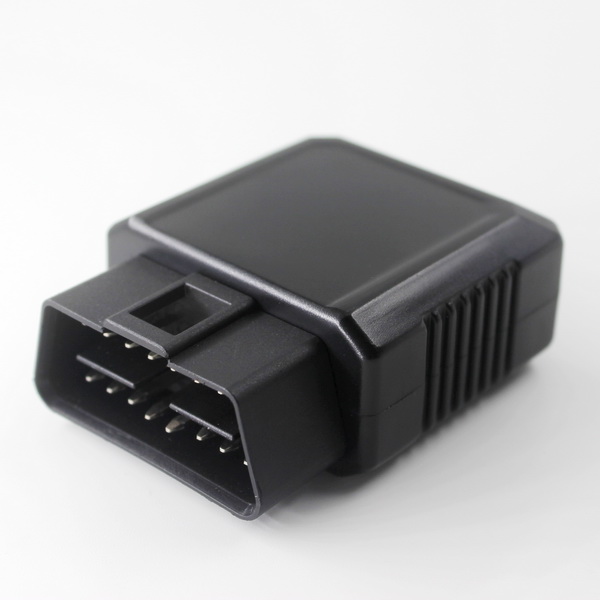

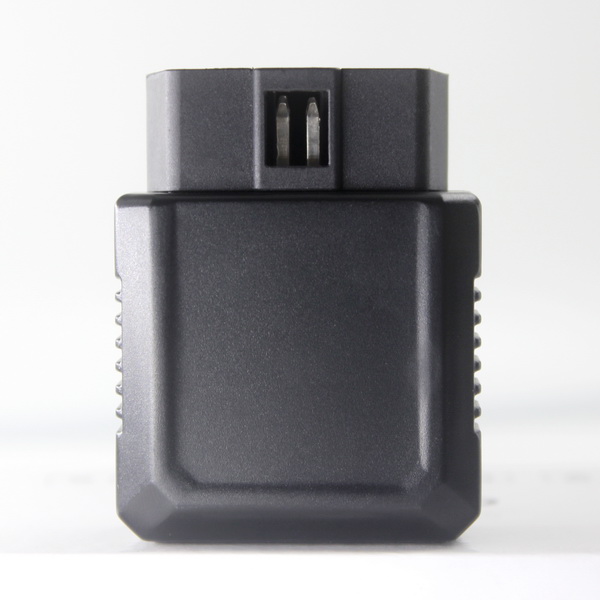

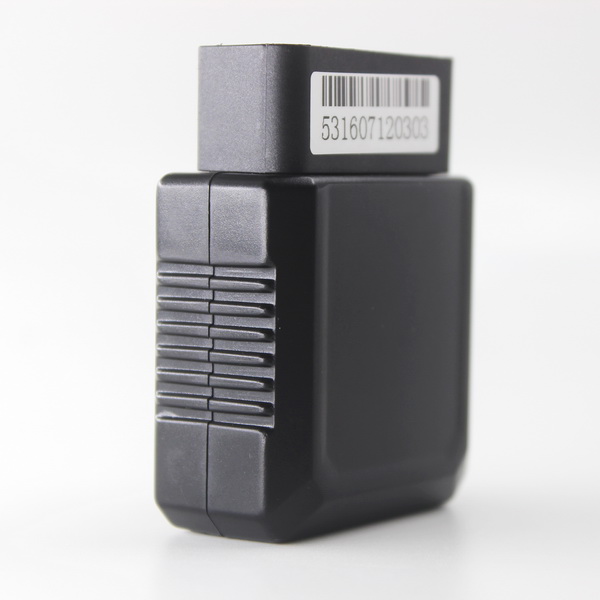

Easy Tracking Obdii GSM GPS Tracker & OBD2 Diagnostic for Cars

Size: 100x60 x23 mm
Real time tracking
GPS storage in blind area and re-upload when cellular recover.
Data reporting according to time interval
Ignition on/off detection
Mileage statistic
Fuel consumption statistic

1.Real time tracking GPS
Read diagnostic data, including vehicle speed, RPM, ECT etc
Read and clear DTCs and freeze frame data
Mileage statistic
Fuel consumption statistic
Driving behavior monitoring, including speeding, hard acceleration, hard deceleration,excessive engine idle time etc.
GPS storage in blind area and re‐upload when cellular recover.
Data reporting according to time interval
Ignition on/off detection

2.ALARMS
Engine on/off status
High engine coolant temperature
Excessive exhaust emission
MIL on/off
SMS location inquiry via Google Map link
OTA FW update

GPS трекер
rastreador GPS

Size	58mm x 48mmx26mm
Interface	OBD Port: Support 16 pin standard OBDII port.
	Configuration interface: Mini‐USB
	SIM card interface: Push‐Push Type
Supported Vehicle Protocols	Support OBDII protocol, Compliant with 90% vehicle ISO-9141-2,ISO-14230（KWP）KWP2000,ISO-15765, CANBUS
Working Voltage	9-30V DC
Working Current	Average 70mA@14V
Working Current	power saving mode <10mA@12V
Position	GPS,AGPS,LBS
GPS	GPS chip: UBLOX-7
	Receiver Channels: 56
	Reacquisition Sensitivity: ‐160dBm
	Position accuracy: 5-10 CEP
	Cold Start: 45s
	Hot Start : 1s
Data Transmission	TCP/SMS
GSM	Quad band 850/900/1800/1900MHz
GSM	Network protocol: TCP/IP
	GSM Module SIM800C
3 axis accelerator	+/‐16g
Flash storage	4M BYTE FLASH
GPS/GSM Antenna	Internal
Optional Accessories	USB Configuration Cable
Working Temperature	‐20° ~ +70° （Humidity 80%）
Humidity	5%～95%（no frog）

Easy Tracking Obdii GSM GPS Tracker & Diagnostic for Cars

Packing:1PC/Color box

66PCS/CTN

CTN Size:33*33*27.5cm

Easy Tracking Obdii GSM GPS Tracker & OBD2 Diagnostic for Cars

T80
