car obd scanner elm327 car code reader diagnosis

Description
Specifications

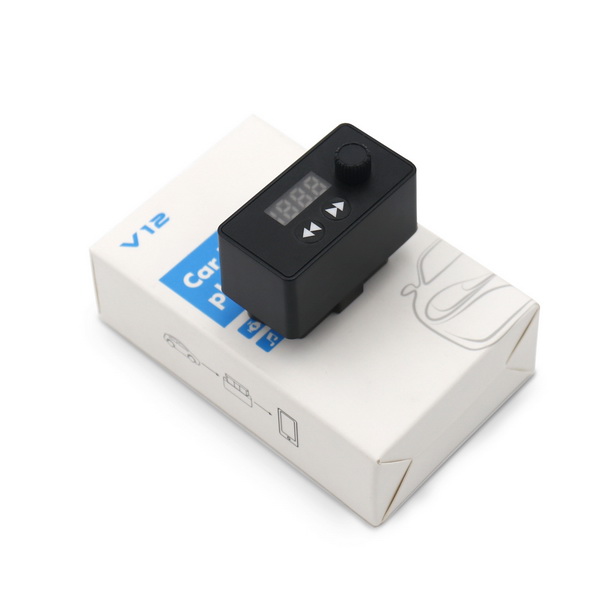

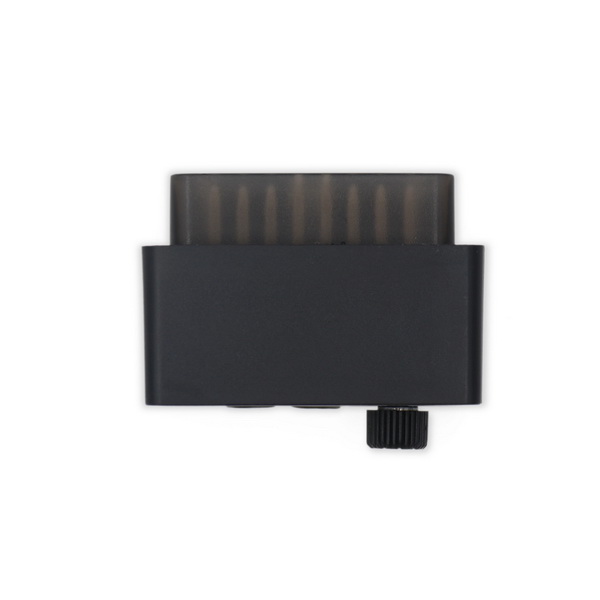

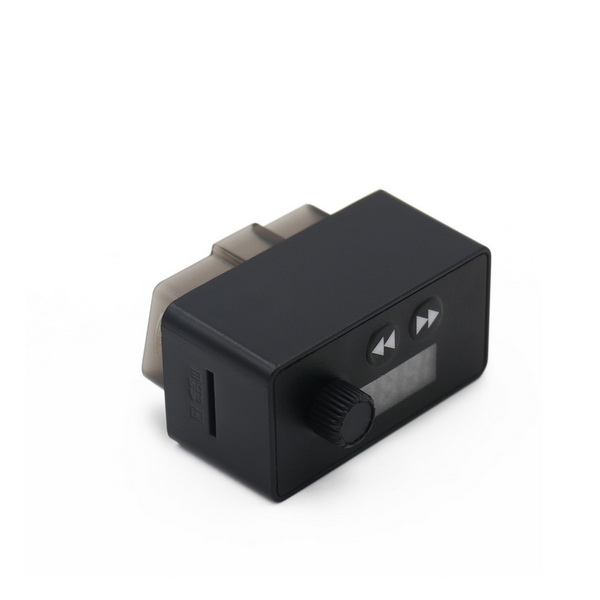

Car obd diagnostic scanner bluetooh music player

1.Classic appearance, smart size, applied to most of car models.
2.Supporting Bluetooth 4.0/3. 0/2. 0 device connection, with voice prompt accompanying the operation.
3.Supporting FM full frequency transmission, have 206 frequency points in total.
4.Supporting digital display.

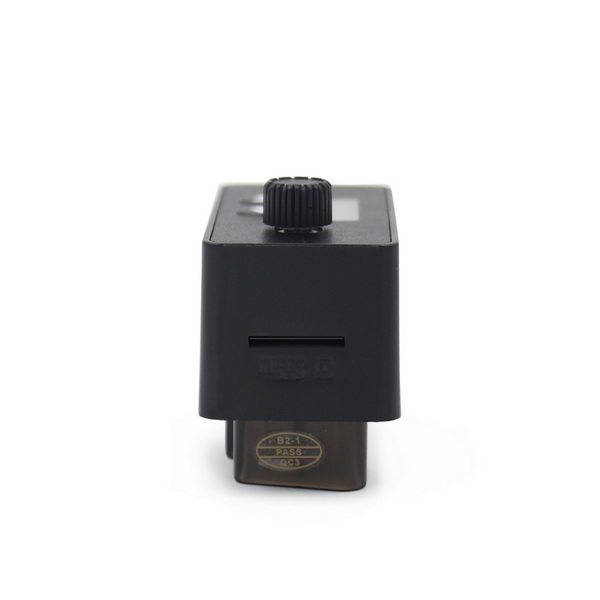

5.Supporting external TF card, MP3/WMA music format, achieve switching play among the folders.
6.Supporting Bluetooth stereo A2DP music play.

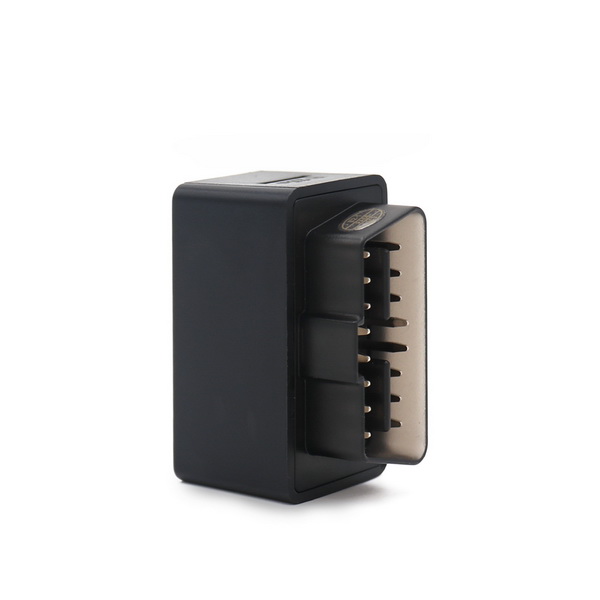

7.Supporting 0BDII function, can connect I0S, Android and other systems of mobiles.
8.Automatically enter low power consumption, awakening mode

obd function

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position

Support OBD 9 standard protocols (J1850, KWP, CAN) with
Low power consumption. This product also comes with a Bluetooth MP3 player and

an FM transmitter that supports SD cards. Ability to play audio files from memory cards and Bluetooth

3) Multi-Protocols Support:

1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Car obd diagnostic scanner bluetooh music player

V12
